Price: $25.99
(as of May 02, 2025 12:31:01 UTC – Details)
Product Description
Product Description
1.Each Encoder have its own USB Cable to make sure that Multiplayer can play the games in the same condition!
2.The Joystick is a square 8 way professional joystick!
3.The buttons are Chrome 5V LED Illuminated push buttons with build-in Blue switch inside.
4.The buttons default as lighted all the time.
5.Joystick hole diameter: 24mm, large button hole diameter: 28-30mm

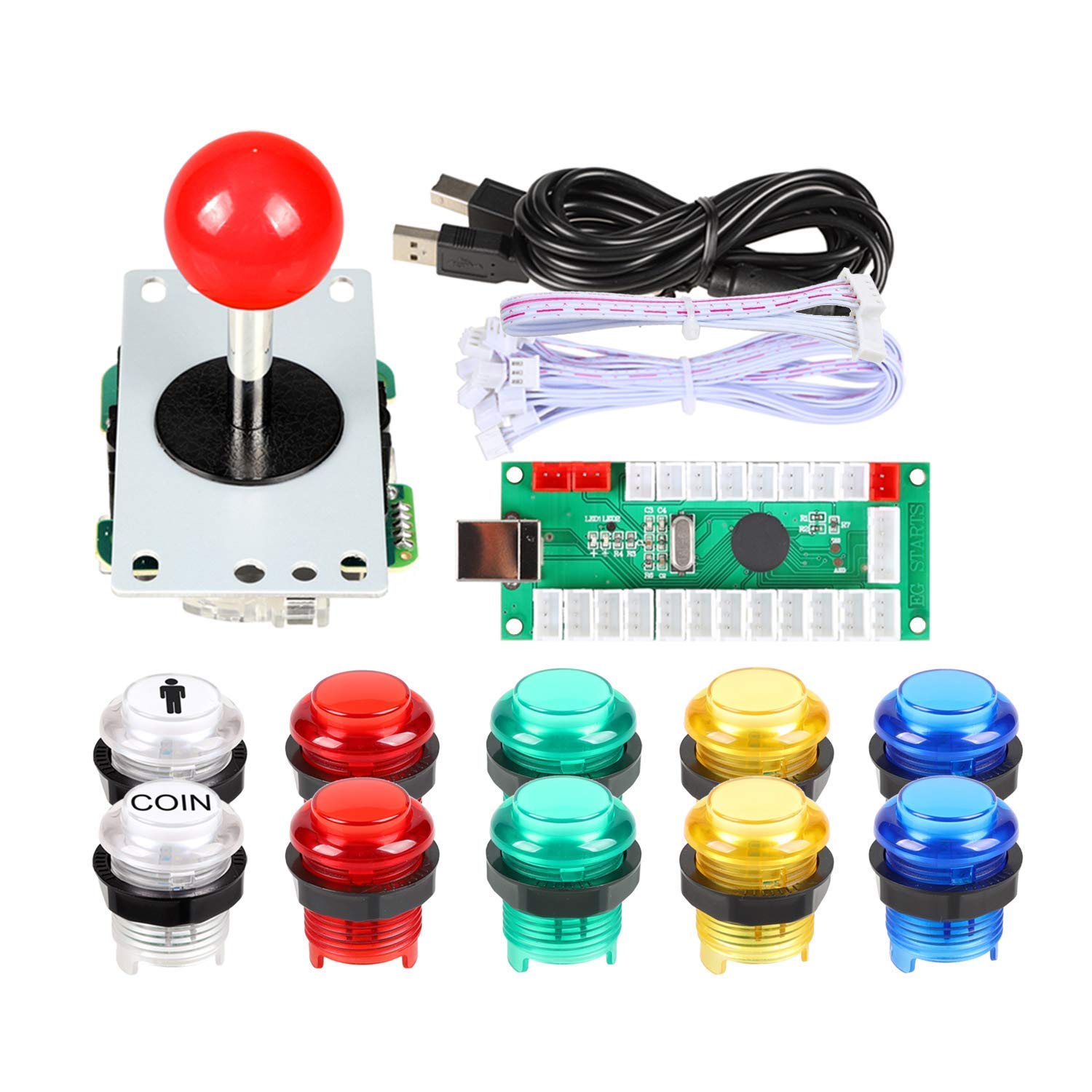

Package Included
1x Zero Delay LED USB Encoder
1x USB Cable
1x 5Pin wires for Joystick
10x 3Pin wires for LED Push Buttons
2x 5V LED 30mm Ring-Fixing LED White Push Buttons (1 Player + 2x Coin)
8x 5V LED 30mm Ring-Fixing LED Push Buttons (2x Red, 2x Yellow, 2x Blue, 2x Green)
1x 5Pin Square 8 way joystick
1x Install Description
Tips for installation
1. Plese read our user manual before starting your diy actions.
2. It’s very important! Connect Joystick’s 5Pin cable to the 5Pin slot that opposite the USB-B terminal. A lot people connect the joystick to the wrong 5Pin slot.
3. There is no need separate the button’s functions when you connect wire to push buttons and encoder board exept you want add ” Auto-Fire”, ” Tubro”, “Clear” & ” Mode” Functions. All the fight button functions can be set in MAME or RetroPie. “Auto-Fire”, “Tubro”,”Clear” & “Mode” Functions have its own slot on the encoder board.
4. For Professional Players. We suggest your change all the buttons and joysticks into SANWA Brand or SEIMITSU Brand.
Tips for New User:
1. The item need work with MAME emulator. So before your build your own project, please download one to work with the parts.
2. If you use this kit to build your own Raspberry Pi Retropie Projects. Please search the steps before your DIY.
Wiring method
Optimize the buttons interface modePlug and play for easy plugging and unpluggingSolve the wiring problem that plagues 90% of players.Let the player DIY become simple from now on.
Arcade Joystick
Can replace the different ball
It’s hight quality 5Pin 8-ways joystick model. The service life reaches 1 million clicks.New interface mode. Reject the wrong interface.
Joystick bottom
Applicable to the wooden shell and iron shell machine,The return of flexible, more wear-resistant; Iron base parallel cone; square gate.
Specification map
All the silver conduction point, contact sensitive; within the iron bar for the stainless steel;2.0 thickness of the electrolytic plate; dust washers; ball detachable, can replace the different ball;
Arcade LED Push Buttons
New Version LED Buttons
Individually independent stickers.Buttons can be opened separately to add brand LOGO. Create your own style.Each button has 3Pin Included switch and LED lights interfaces.
LED Lights
High quality materialsHigh temperature resistant plastic partsBody and translucent HD button coverRotating design
Specification map
Comes with lighting effects, can be used for wood console, metal panels, with the use of various types of animation gamePlucked gold-plated, gold-plated contacts, micro-sound, long life, test life of up to 10 million timesUse voltage: 5V
USB Controllers
USB Encoder
The USB Cable: 87InchThe 5Pin Cable: 9.8 InchThe Buttons Cable: 9.8 InchUSB encoder imported SMD components. Work more smoothly. Longer life expectancy. Lower energy consumption.
Wiring method
Optimize the Buttons interface mode.Plug and play for easy plugging and unplugging.Solve the wiring problem that plagues 80% of players.Let the player DIY become simple from now on
PCB Board
USB Print TerminalsK1-K12 Push Buttons Terminals5Pin Joystick Terminals2Pin Joystick TerminalsAuto, Turbo, Clecet, Mode Terminals6 and 6-1 is Output 5V Power Terminals
Quality: Excellent Control USB Encoder. High Quality 8 way joystick. LED Buttons Good lighting effects.
Fonction: DC 5V Arcade Illuminated Pushbutton, 8 ways Joystick Use Microswitch with gilded contact leg, excellent electronic performance, long life, reliability tested to 1,000,000 cycles!
Hole Size: Joystick – 24mm. Large Buttons-30mm
Package: 175 x 95 x 115mm. Each button and joystick are individually packaged and 1 year warranty.
Support: Perfect LED Kit for Windows Arcade Games PC Games DIY Project Arcade Raspberry Pi for RetroPie system MAME
